Two Dimensional MHD Equations

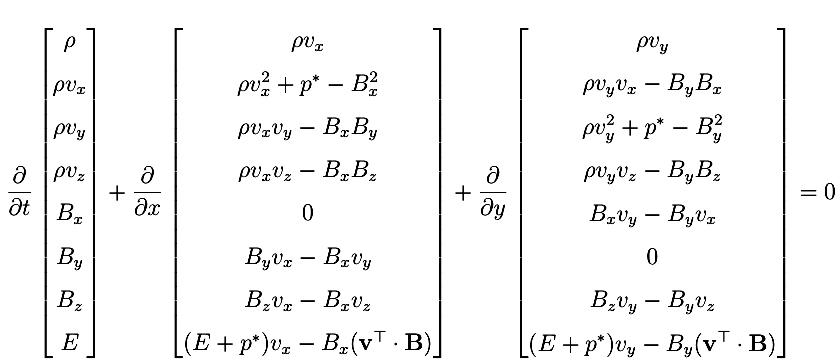

In this example we use CentPack's two-dimensional second order semi-discrete formulation, centpack_2d_SD2, to evolve the solution of Ideal MHD equations


stands for the total pressure, and the the pressure, p, is related to the conserved quantities through the equation of state

with . The solution is evolved over the computational domain , from to . The initial conditions are those of the Orszag-Tang Vortex System

with periodic boundary conditions, , using a 288 x 288 mesh and cfl number 0.75.

The images below display, from top to bottom and left to right, the initial contours of density and pressure (at t = 0.05), and the velocity and magnetic fields. Click on the individual images to see an animation from to .

Click on the images above to see an animation


The files implementing this exaple are included in the current CentPack distributionCP-1.0. Read here how to run and compile this example.
